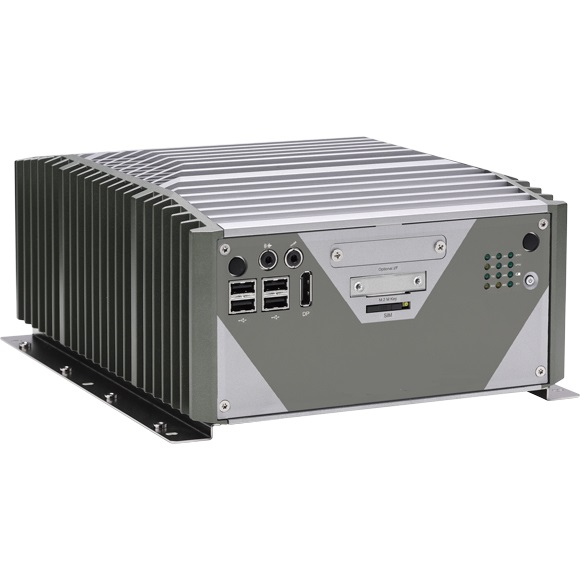

LG-P190FH2E Mini PC (1 PCI + 1 PCIe x4 slots), Intel 9th Gen. CPU, 3 LANs, 3 Displays (HDMI+DP+DVI-D), 9V-30V
Integrated with 8th/9th generation Intel® Core™ i7/i5/i3 processors, LG-P190F series is the fanless PC designed for industrial applications which demand high CPU and graphics performance. LG-P190F series supports up to 64G DDR4 memory and have several options on storage devices like M.2, HDD or SSD. Wide range of DC input from +9V to 30V DC input, and can be operated in an extended operating temperature range between -5 to 55 Celsius degree. For extended module availability, LG-P190F series also designed one internal mini-PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules).
8th/9th Generation Intel® Core™ i7/i5/i3 LGA Fanless System with Expansion:
Optional Models: LG-P190FH2 ( 2 PCI slots), LG-P190FE2 ( 2 x PCIe x4 slots), LG-P190FH2E ( 1 PCI + 1 PCIe x4 slot), LG-P190FE ( 1 PCIe x4 slot)
-
- Main Feature
- Support 8th & 9th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q370 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, teaming and PXE
- 1 x External M.2 socket and 1 x SIM card socket
- 6 x USB 3.1 Gen 1, 4 x USB 2.0
- 2 x RS232/422/485 with auto flow control & 2 x RS232
- 1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
- Support +9V to 30VDC input; ATX power mode
- 1 PCI + 1 PCIe x4 slots
SPECIFICATION
| CPU Support |
Support 8th & 9th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Core™ i7-9700TE, 8 Core, 1.8GHz, 12M Cache
- Intel® Core™ i5-9500TE, 6 Core, 2.2GHz, 9M Cache
- Intel® Core™ i3-9100TE, 4 Core, 2.2GHz, 6M Cache
- Intel® Core™ i7-8700T, 6 Core, 2.4GHz, 12M Cache
- Intel® Core™ i5-8500T, 6 Core, 2.1GHz, 9M Cache
- Intel® Core™ i3-8100T, 4 Core, 3.1GHz, 6M CacheTurbo-boost disabled by default |
| Main Memory |
2 x DDR4 2400/2666 SO-DIMM socket, support up to 64GB |
| Display Option |
Three independent display
- HDMI+DP+ DVI-DDual independent display
- HDMI+DP
- HDMI+DVI-D
- DP+DVI-D |
| Front I/O Interface Status LEDs |
3 x LAN active LEDs2 x GPO status/COM1/2 TX/RX LEDs1 x HDD access LEDs1 x Battery low1 x M.2 |
| Front I/O Interface |
1 x ATX power on/off switch1 x DP1 x Line-out and 1 x Mic-in2 x Antenna holes1 x External M.2 socket Key M1 x SIM card holder4 x USB 2.0 ports (500mA per each) |
| Rear I/O Interface |
4 x DB9 for COM1 to COM4
- COM1/2: RS232/422/485 auto flow control
- COM3/4: RS2326 x USB 3.1 Gen 1 ports (900mA per port)1 x DVI-D port1 x HDMI port2 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE1 x Intel® I219-LM GbE LAN port1 x 3-pin remote power on/off switch+9V to 30V DC input |
| Internal I/O |
8CH GPIO: internal pin header, support 4 x GPO and 4 x GPI, TTL 5V levelOn-board TPM2.0 (SLB9665) for data encryption purpose1 x Internal M.2 Key B support optional LTE |
| Storage Device |
1 x External M.2 socket (Key M SATA 3.0, PCIe x4)1 x 2.5" HDD or SSD (SATA 3.0) driver bay |
| Expansion Slot |
LG-P190FE2: two PCIe x4 expansion slots
- Add-on card length: one 169mm max, and one 240mm max.
- Power consumption: 10W/slot max
LG-P190FH2: two PCI expansion slots
- Add-on card length: one 169mm max, and one 240mm max.
- Power consumption: 10W/slot max
LG-P190FH2E: one PCIe x4 and one PCI expansion slot
- Add-on card length: one 169mm max for PCIe x4, and one 240mm max for PCI
- Power consumption: 10W/slot max
1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
|
| Power Requirements |
AT/ATX power mode (default: ATX power mode) Power input: +9 to +30V DC
Power adapter: optional AC to DC power adapter (24V DC, 120W)
|
| Dimensions |
215 mm(W) x 272mm (D) x 115mm (H) without wall mount bracket (8.5" x 10.7" x 3.7") |
| Construction |
Aluminum and metal chassis with fanless design |
| Environment |
Operating temperature:
- Ambient with air flow: -5°C to 55°
- (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Storage temperature: -20°C to 80°CRelative humidity: 10% to 95% (non-condensing)Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- M.2: 50G, half sine, 11ms, IEC60068-2-27Vibration protection with HDD condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6Vibration protection with SSD & M.2 condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| Certifications |
CE approval- EN61000-6-2- EN61000-6-4FCC Class AUKCA |
| OS Support Lists |
Windows 10 64-bitLinux Kernel 4.9 |
| Weight Information |
Gross weight: 6.84kgNet weight: 5.3kg |
